We often hear the term "wheel alignment" tossed around like it’s some sort of automotive magic spell. You know it's important, but perhaps you've never really understood why. It's not just about making your wheels point straight ahead—it's about orchestrating a complex dance of angles, forces, and precision engineering that profoundly influences how your car handles, how long your tires last, and even how much you spend at the gas pump. Today, we're not just skimming the surface. We're diving deep into the science and mechanics of wheel alignment, unraveling its mysteries and empowering you with an understanding that goes far beyond the ordinary. Think of it as peeling back the layers of an onion, each layer revealing a new level of complexity and importance. We're not just aiming for a superficial understanding; we want to give you the knowledge to become an informed and proactive vehicle owner.

The Anatomy of Wheel Alignment: A Symphony of Angles

While you might be familiar with the common triumvirate of camber, caster, and toe, there’s a whole universe of nuance within each of these concepts, and several other elements working in concert with them. It’s not enough to simply know the names; you need to understand the intricate ballet they perform, much like an orchestra, each instrument plays its own part, and if one is out of tune, the whole symphony suffers. We’re not just talking about static measurements on a page, but dynamic forces interacting while your car is in motion.

• Camber: The Art of Tilt – More Than Just In or Out: Imagine your car’s wheels standing upright, perfectly perpendicular to the road, like soldiers standing at attention. That’s zero camber, the starting point from which all other variations are measured. Now, picture the top of the wheel leaning slightly inward towards the car, creating a gentle slope; that’s negative camber. And conversely, if the top of the wheel tilts outward, creating a less common but equally significant angle, it's positive camber. But why does this subtle tilt matter so much? Why can’t we just leave them perfectly straight and avoid the whole thing? Well, it's not a simple “in is bad, out is good” equation. In the real world, with real driving conditions, things get far more complex. The ideal camber setting is a dynamic, ever-changing variable, not a static setting, influenced by your vehicle's inherent design, your personal driving style, and even the specific terrain beneath your tires. Consider a weekend racer, someone who loves pushing the limits in every turn, hungry for every ounce of grip in a tight corner. They might benefit from a touch of negative camber, which helps the tire dig in and maintain contact with the road during aggressive maneuvers. The negative camber enables the tire to remain as flat as possible on the ground as the vehicle leans into a corner, maximizing the contact patch. But, for the average daily commuter, who is more concerned with tire longevity and stability during those long daily drives, a more neutral camber setting is the most practical choice. This delicate balance is not easy to achieve, its all about maximizing the tire's contact patch with the road surface, ensuring even wear, and preventing premature replacement, saving you both time and money. Think about a marathon runner for a moment. If they were to land only on the inside or outside edge of their foot, one side of their foot would be overstressed, and they will get injured. A car’s tire is no different. We can suffer premature failures due to an imbalance of pressure on the tire due to poor alignment.

• Furthermore, consider the unseen impact of load. When your car is packed to the brim with passengers and luggage, your suspension compresses, and camber angles shift subtly, sometimes dramatically. It is not only about how the car handles when empty, it is also about how it will perform and how the tires will wear when loaded. This is why it's not just about getting an alignment when your car is empty. It's crucial to check it under typical load conditions to ensure the tires remain in optimal contact with the road, even when you're carrying extra weight. Neglecting this crucial step can lead to excessive wear on one edge of your tires, forcing you into the expense of a new set much sooner than anticipated. It’s also worth noting that the tire is not the only component taking a beating when camber is off. The wheel bearings, suspension bushings, and steering components are all placed under greater stress when not aligned correctly. It's like a domino effect, one part being stressed leads to other parts overworking and eventually failing.

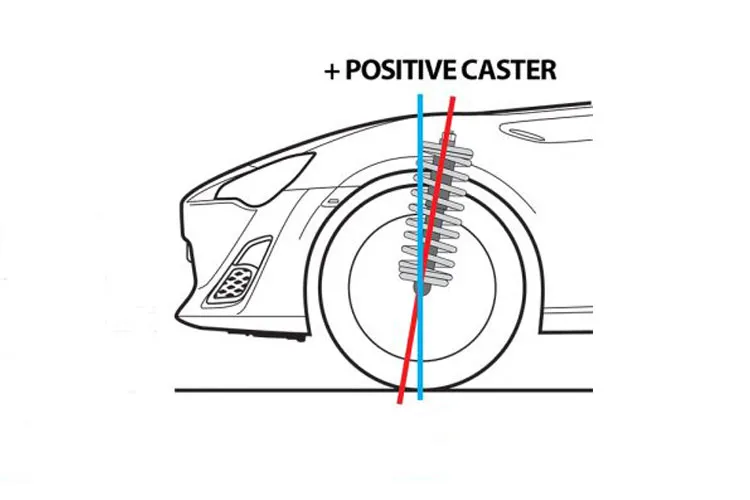

• Caster: The Forgotten Architect of Steering Stability: If camber is the artistic tilt, caster is the sturdy and steadfast foundation of steering. Caster is about the angle of your steering pivot as seen from the side of your car. Now, this one can be tricky to visualize. Think about the front forks of a bicycle, and you'll start to understand the principle. It's not something you often hear about in casual car talk, but it plays a crucial role in shaping how your car feels, handles, and behaves, especially at speed. Positive caster, in particular, is the unsung hero here. It’s the reason your steering wheel returns to the center after you’ve made a turn, like a compass needle always seeking true north. It’s what gives you that satisfying sense of stability and tracking, especially when you're cruising down the highway, it's that calm feeling that puts your mind at rest. Too little positive caster and your car will feel like it's wandering all over the road, requiring constant corrections to maintain a straight course. It’s a disconcerting feeling, like trying to drive a shopping cart with a wobbly wheel.Moreover, consider what happens when you modify your vehicle, perhaps by installing a lift kit to conquer off-road terrain. These modifications often dramatically alter caster angles, often without the owner even knowing. This is why a professional wheel alignment is absolutely essential. A seemingly minor change in caster can throw off the delicate balance of your steering system, resulting in instability, unpredictability, and an unsafe driving experience. It is important to get these checked after any modification, no matter how minor. Caster splits, where each front wheel has slightly different caster angles, are also becoming more common and are utilized in performance and racing vehicles to fine-tune handling. This is where things get very complicated and only highly experienced technicians should work on vehicles that require these adjustments. In these cases, everything must be absolutely precise, otherwise dangerous driving conditions can occur. A slightly negative caster angle could be used in some specific performance situations as a way to increase turning ability, but it will feel strange to drive, increase tire wear, and should never be used in a regular road car as it is dangerous and unpredictable. It is important to understand the reasons for each individual setting.

• Toe: Navigating the Directional Dance: Toe is all about the direction of your wheels as viewed from above, like examining your feet standing on a line. If the front of the tires are closer together than the rear, we say that the wheels are “toed-in.” Conversely, if the front of the tire points away from each other, we say they are “toed-out”. It may seem like a minor directional difference, barely noticeable to the untrained eye, but this angle has significant repercussions for your tire wear and handling dynamics. It's not just a matter of getting them to point straight ahead, it's about finding the perfect balance, like a tightrope walker carefully maintaining their equilibrium. The subtle degree of toe influences how efficiently your car rolls, how evenly your tires wear, and how stable it feels on the road. Think about it like two ice skaters; if one was pointed slightly inwards, they would not roll smoothly and their edges would start to suffer. If both were pointing outwards, the situation would be even worse and they would be in danger of not rolling. In the same way, a car needs to be aligned correctly to get the best performance, tire wear, and safety.You might be surprised to learn that the ideal toe setting isn’t the same for every vehicle, it is a finely crafted and specific setting. Rear-wheel-drive cars often benefit from a slight toe-in, which enhances stability, especially at higher speeds. Whereas front-wheel-drive vehicles might have a slight toe-out to improve turn-in response, allowing them to change direction a little more quickly. Even these rules are not hard and fast, as there are different suspension setups that require different toe angles, and each design is unique. It's a delicate balancing act, a compromise between straight-line stability, cornering agility, and tire longevity; like a carefully crafted recipe, each ingredient playing a crucial role. And consider the dynamic nature of toe. It’s not a static measurement that remains fixed while you drive. When you accelerate, the suspension flexes, and engine torque subtly alters the toe angle. The same effect occurs during braking. Understanding this dynamic change is important for alignment engineers, who must design systems to account for these subtle shifts and ensure the tires remain optimally positioned throughout the full range of driving scenarios.

Beyond the Primary Angles: The Unsung Heroes of Alignment

The world of alignment is far more intricate than just camber, caster, and toe. There are several less-familiar yet equally crucial factors that work behind the scenes, orchestrating the driving experience, like hidden gears in a clock, essential to the smooth running of the whole machine.

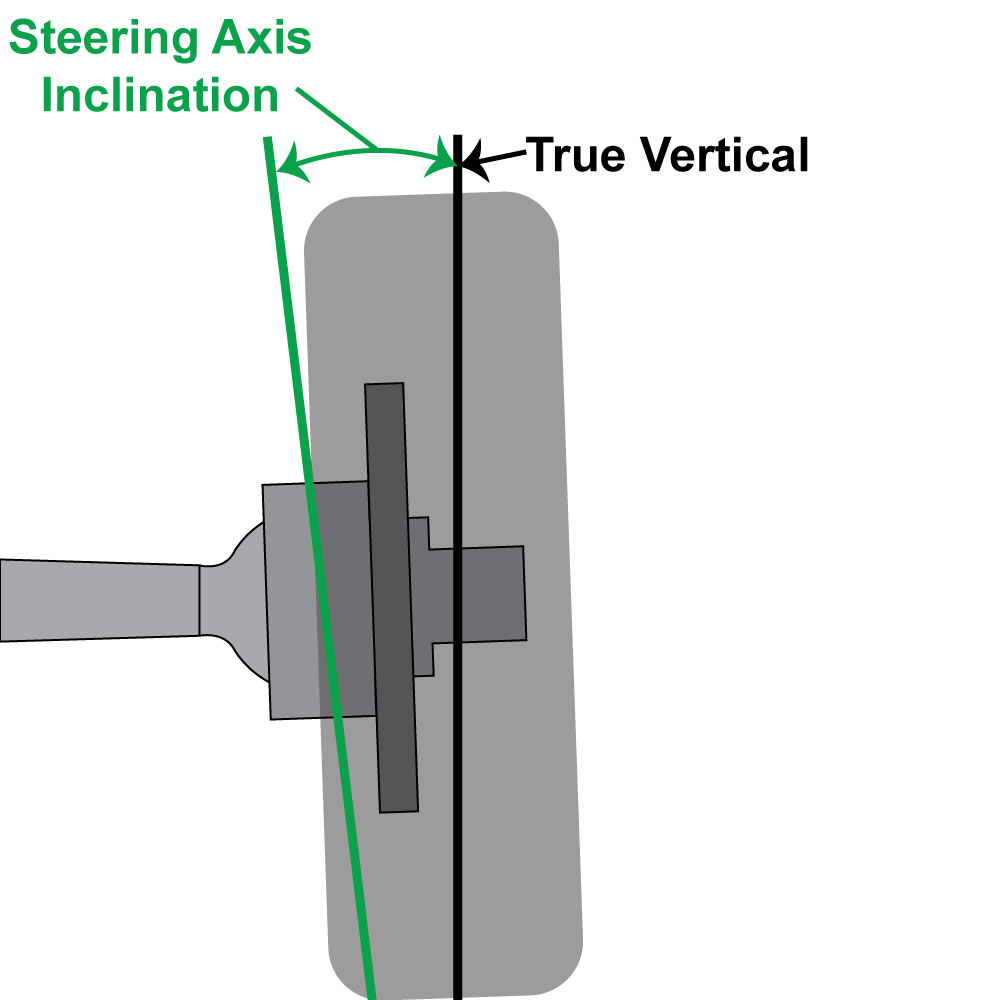

• Steering Axis Inclination (SAI): Imagine a vertical line running straight up through your car’s wheel, like a plumb line hanging straight down, compared to the line of your car’s steering pivot. The angle between these two lines is called the Steering Axis Inclination (SAI). It's one of the less-talked-about angles, a hidden variable, but it significantly influences the steering feel, stability, and how your car handles rough roads. It determines the leverage applied to the steering wheel, how the car reacts to bumps, and its overall straight-line tracking. It’s the reason some cars feel light and nimble to steer, while others are heavier and more planted. SAI is also closely connected to scrub radius which is discussed below, a further example of how different aspects of the alignment are intertwined.

• Included Angle: This angle is the mathematical sum of the SAI and the camber angle, a seemingly simple calculation, but it's much more than the sum of its parts. It’s a diagnostic tool, acting as an indicator of trouble when problems arise from bent or broken suspension components. In these cases, you can have a good SAI and camber reading separately, but if the included angle is incorrect, it would be a good indication that a component in the steering system has been bent, broken, or damaged. This seemingly minor deviation from the specification could indicate a major fault.
• Thrust Angle: Imagine driving a shopping trolley where one of the rear wheels is misaligned, pulling the cart in one direction. You can feel that the cart pulls, and the only way to keep it in a straight line is to constantly correct the cart, using your body to push it the right way. The same applies to a car. This is thrust angle. This crucial measurement describes the direction your rear wheels are pointing in relation to your car's centerline, it's all about how the rear of your car is behaving. If this angle is off, your car will feel like it’s trying to move sideways as you drive, a phenomenon known as "crabbing." It’s like a boat that's not moving straight through the water, the back of the boat is pointing slightly to one side.
• Scrub Radius: This is the distance on the ground between where the steering axis meets the ground and the center of the tire's contact patch. If the steering axis meets the ground inside the center of the tire, then we say this is a positive scrub radius and vice versa. A scrub radius influences steering feel and sensitivity. A positive scrub radius provides a bit more feedback, letting you know more about what is happening beneath your tires, and a negative scrub radius reduces the feedback in the steering. It's a subtle difference, but it's important for the overall driving experience. Car designs take into consideration this scrub radius and use it to achieve the desired feedback feel when driving, so you can feel the road beneath you and react accordingly.
• Ride Height: This is the distance from your chassis to the road, a critical setting that often gets overlooked. Many vehicles are designed to have different ride heights depending on the application; for example, off-road vehicles often have a much higher ride height, allowing them to tackle rough terrain. When ride height is different from specification, it will alter all of the wheel alignment angles. Even if each individual measurement of camber, caster, and toe are in specification when measured at an incorrect ride height, the vehicle will not perform well, as the other angles are thrown off when measured at the incorrect ride height. The vehicle would be like a high jumper with shoes that are too big, their performance is dramatically affected.

The Intricate Dance Between Alignment and Tire Wear

Your tire's contact patch is the critical interface between your car and the road, the tiny part of your tire that keeps you safe and in control. Your alignment dictates its shape and size, influencing how evenly the load is distributed across your tires. In normal driving, you want as much of the tire tread in contact with the road surface as possible to distribute wear evenly, prolonging their life and ensuring optimal performance. A misalignment will result in uneven wear due to unequal pressure on different areas of the tire, wearing the tire unevenly.

• Toe Issues and Feathering: Imagine dragging a tire sideways along a rough surface. This is similar to what happens when you have a toe misalignment. Instead of rolling smoothly, the tire is dragged along the road, resulting in a characteristic "feathering" effect. One side of the tread blocks will be rounded and smooth and the other side will be sharp and pointy, a pattern so distinctive that experienced technicians can often diagnose a toe problem simply by looking at the tire. This is one of the most common types of tire wear associated with an alignment problem. It is also the one that is the most overlooked because it is only minor and many car owners will not notice it until it is too late.

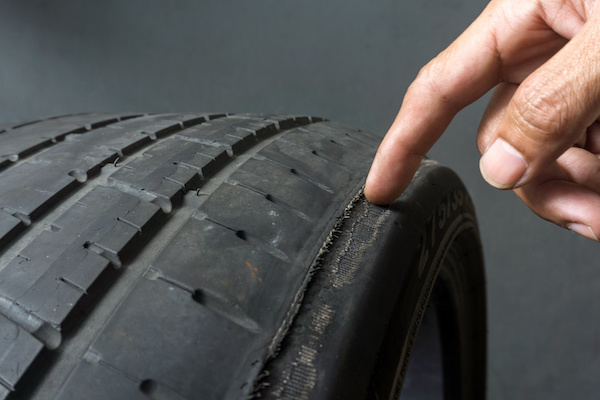

• Camber Issues and Shoulder Wear: Too much positive or negative camber will shift the tire's load towards one of the shoulders, either the inside or outside edge. Over time, this overstresses one side of the tire, causing it to wear prematurely along the inside or outside edge, leading to a frustrating situation. The middle of the tire will have plenty of tread, yet the sides will be totally bald, meaning you will have to replace the tire, despite it being in decent condition. It is a waste of resources and money.
• Internal Tire Damage: Continuous misalignment creates stress within your tires, weakening their internal structure and increasing the risk of a tire failure. While surface wear patterns are an obvious sign that something is wrong, the internal damage is not immediately obvious, and it could cause catastrophic tire failure while you are on the road. This is why proper alignment is more than just about what you can see; it's about preserving your tires from the inside out, preventing a potential hazard that could put you and other road users at risk.
• Tire Rotation is a Tool, not a Fix: While rotating your tires is an important part of regular maintenance, helping them to wear more evenly, it cannot correct the problems caused by poor alignment. It can only delay the inevitable. You should always get an alignment done when new tires are installed to make sure they will wear evenly and last for their expected lifetime.

The Advanced Diagnostic Process: More Than Just Pointing Lasers

A professional wheel alignment goes far beyond just hooking up lasers and adjusting a few bolts. It's a process that requires expertise, understanding, and meticulous attention to detail, like a skilled surgeon carefully operating on their patient.

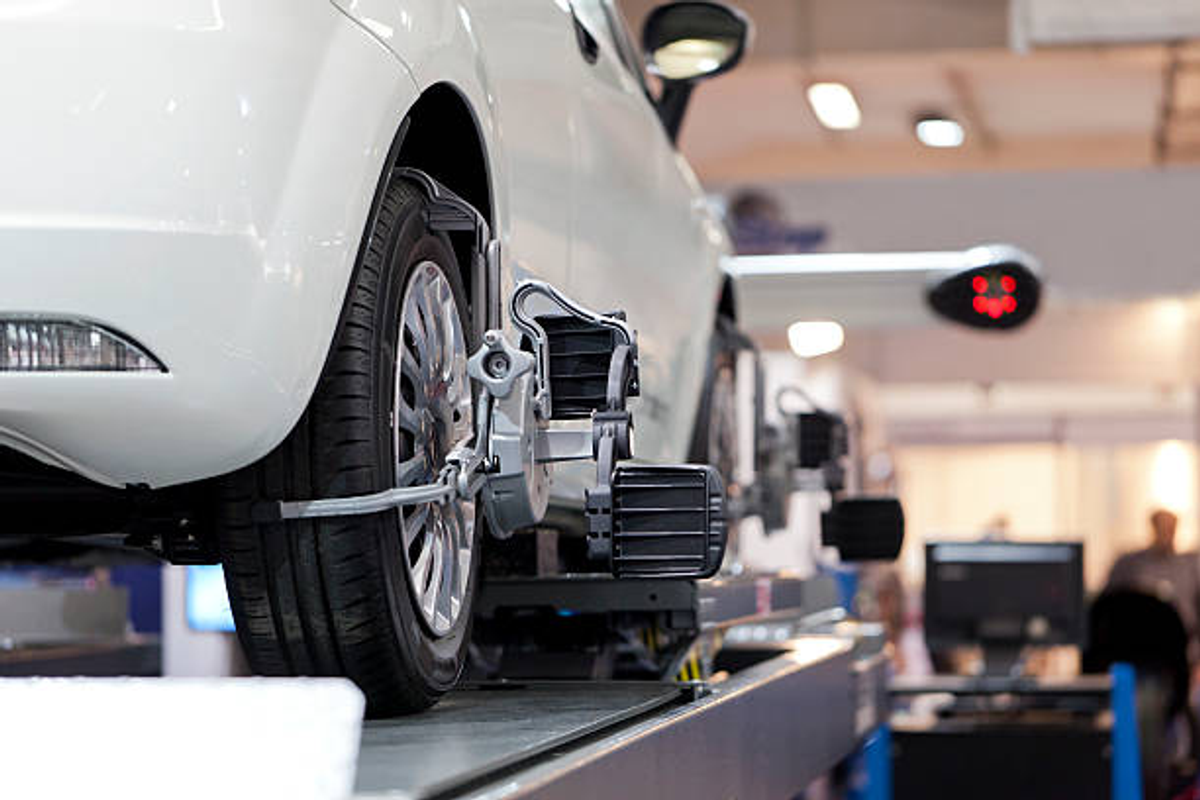

• The Equipment Is Only a Tool: While advanced laser alignment machines are useful and accurate, it is only a tool, the quality of the alignment comes down to the technician who is using the tool. It's like a musical instrument, only skilled hands can bring out the best performance. A good technician will take the readings and compare them to the vehicle manufacturer's specification, considering all of the nuances of the vehicle and any specific requirements the customer has. They will adjust angles to compensate for any issues that are discovered and use a methodical approach to achieve optimal wheel alignment. It is a skill developed over time and with experience.
• A Full Inspection is Key: A thorough alignment procedure always includes a comprehensive inspection of all steering and suspension components, the entire system. Issues such as worn bushes and bent tie rods can dramatically affect alignment readings and cannot be fixed until they are replaced. This is why it is vital that alignment technicians have experience and knowledge, and are familiar with the intricacies of the steering system. They will have a keen eye for any signs of wear and will be able to spot any issues before they escalate into major problems.

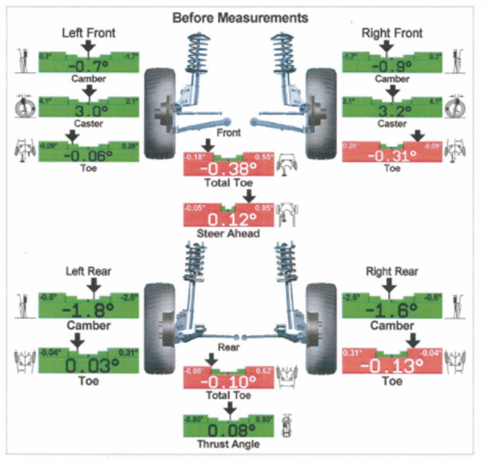

• The “Before and After” Report: A good alignment shop will always provide a detailed report showing the "before" and "after" readings, like a detailed map of the changes that have been made. It’s not enough to simply say the job is done; a proper report gives you the transparency you need to understand the changes that have been made to your vehicle and gives you a baseline for your next alignment procedure, so you can compare each alignment over time and monitor any issues that may arise.
• Interpreting the Numbers: An alignment report can be overwhelming if you don't know what all the different angles mean. Always ask for a technician to go through the report, explaining each measurement, and letting you know what was required and how this was resolved.

The Impact of Poor Alignment: A Real-World Perspective

The consequences of poor wheel alignment go far beyond just uneven tire wear. They extend into various aspects of your driving experience, affecting performance, fuel consumption, and even your safety. It’s a hidden cost that many drivers pay without realizing.

• Fuel Efficiency Takes a Hit: The extra force required to push a car with misaligned wheels will make your engine work harder and burn more fuel, like swimming against the current. It might seem like a minor thing, but over the long term, the extra cost of fuel can add up significantly. A small alignment issue could easily cost you more in fuel every month than the alignment itself!
• Increased Steering Effort: Misaligned wheels place additional strain on your steering mechanism. If it feels difficult to turn your steering wheel, and you are finding yourself physically exerting yourself to turn your car, it could be a sign of poor alignment. It’s like trying to lift a heavy weight with a broken arm, you have to work harder to overcome the resistance.
• Stopping Distances Can be Affected: When the tires of a vehicle are not correctly aligned, it will affect how the vehicle reacts under hard braking. This could have a significant impact on the stopping distance, making it longer, and this could lead to an increased risk of an accident. It's all about keeping your vehicle under control when it matters most.
• Reduced Cornering Ability: Proper alignment is crucial for optimal handling and grip, especially when cornering. Poor alignment will reduce the level of grip from your tires, which may cause the vehicle to slide more than expected and result in loss of control, especially in wet or icy conditions. It’s the difference between navigating a curve with confidence and struggling to maintain control.

Beyond the Usual Suspects: Hidden Causes of Misalignment

While potholes and curbs are common culprits for misalignment, several other factors can contribute to the problem, often without you even knowing it.

• Worn-Out Suspension Bushings and Ball Joints: These components wear down over time and lose their ability to maintain proper angles, like joints that have become arthritic and cannot hold the body upright. If bushings and joints are loose or broken, they cannot keep the correct alignment. Replacing these components before doing an alignment is crucial for a successful and lasting fix. It’s about building a solid foundation for your car's alignment.
• Bent Suspension Components: Even a minor bend in a control arm, steering knuckle, or suspension arm can dramatically affect alignment and needs to be replaced before getting an alignment, like a bent frame on a picture, throwing off all of the angles.
• Chassis Flex: In some severe and rare cases, chassis flex caused by wear and tear, accidents, or extreme conditions can impact alignment, throwing all the measurements out of specification. An experienced technician will be able to spot these issues and inform you of what is needed for a permanent solution, much like a doctor carefully diagnosing an underlying ailment.

Conclusion: The Art and Science of Optimal Alignment

Wheel alignment isn't just a routine maintenance check; it's a deep dive into the physics of vehicle dynamics and a dedication to preserving your vehicle's performance, safety, and overall efficiency. Armed with an understanding of the intricacies of wheel alignment, you can make informed decisions about the maintenance of your vehicle. By paying attention to the signs of misalignment, seeking professional service when necessary, and embracing the long-term benefits, you'll be taking care of not just your vehicle, but also your wallet and safety, becoming a proactive and responsible driver. It's about empowering you to take control and enjoy a smoother, safer, and more efficient driving experience.
